用瑞佑的控制芯片實現淡入淡出,半透效果
作者：Harchy 發表日期：2020-12-25 來源：菱致電子 瀏覽：
- 通過瑞佑的液晶控制芯片可以很容易實現半透明效果、淡入淡出效果，具備該功能的型號有RA8889,RA8876,RA8876M,RA8877,RA8871M,RA8873M等等，僅需要單片機控制,代碼簡單易用.
代碼舉例:BTE_Alpha_Blending(0,2736,500,300,0,2736,1024,0,0,2736,1100,400,200,200,16);
實現效果參考視頻:
http://v.youku.com/v_show/id_XMTM0MzQzNzY0NA==.html?f=26097383&from=y1.2-3.4.1
通過上位機操作說明視頻:
http://v.youku.com/v_show/id_XOTQwMTI2OTMy.html
函數使用說明:void BTE_Alpha_Blending

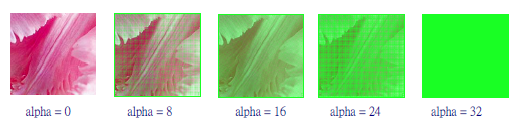

(unsigned long S0_Addr //Start address of Source 0,unsigned short S0_W //image width of Source 0 (recommend = canvas image width),unsigned short XS0 //coordinate X of Source 0,unsigned short YS0 //coordinate Y of Source 0,unsigned long S1_Addr //Start address of Source 1,unsigned short S1_W //image width of Source 1 (recommend = canvas image width),unsigned short XS1 //coordinate X of Source 1,unsigned short YS1 //coordinate Y of Source 1,unsigned long Des_Addr //start address of Destination,unsigned short Des_W //image width of Destination (recommend = canvas image width),unsigned short XDes //coordinate Y of Destination,unsigned short YDes //coordinate Y of Destination,unsigned short X_W //Width BTE Window,unsigned short Y_H //Length BTE Window,unsigned char alpha//alpha : Alpha Blending effect 0 ~ 32, Destination data = (Source 0 * (1- alpha)) + (Source 1 * alpha))
